Description

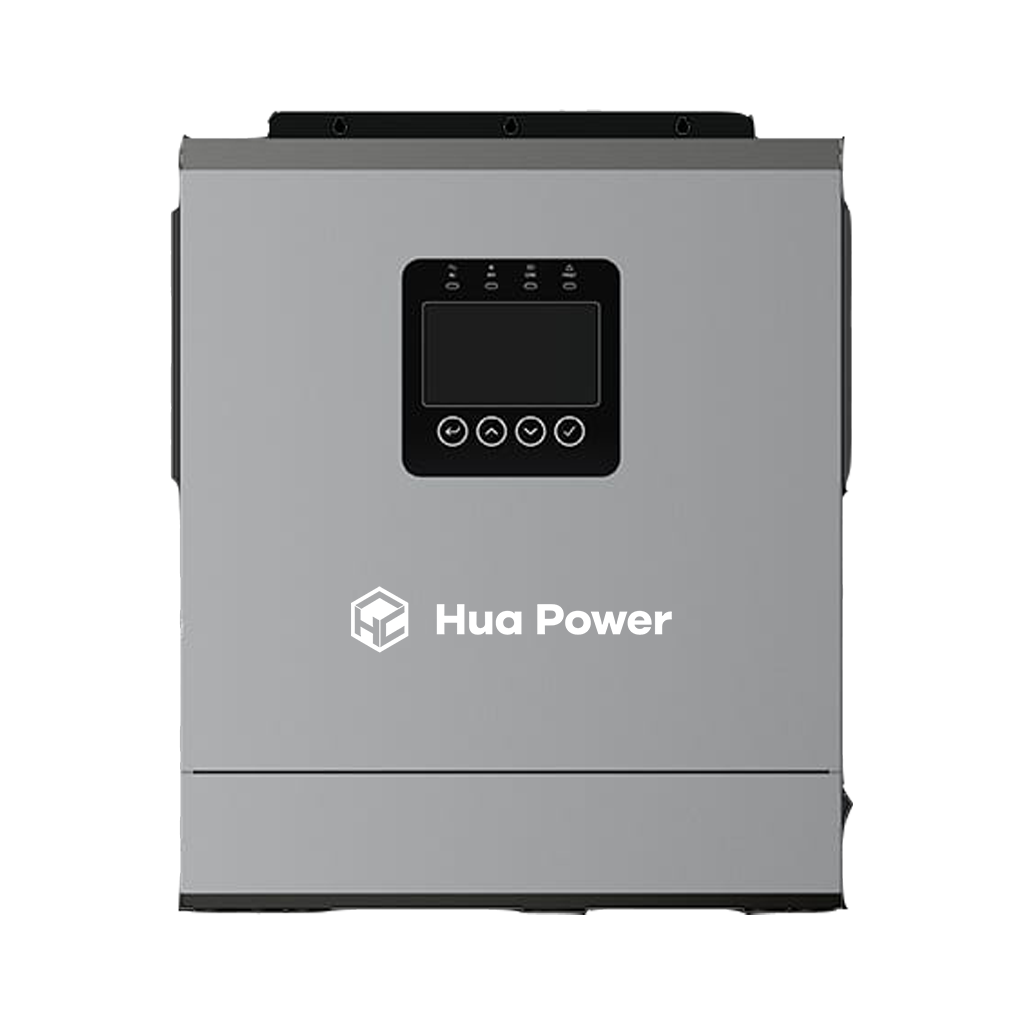

Get powerful, reliable backup power with the Hua Power PV9000-48 Pro S6.5 — a 6.5kW single-phase off-grid solar inverter engineered for homes, shops, clinics and farms. With a built-in 120A MPPT solar charger, dual AC input (grid + generator) and dual AC output, it delivers pure sine wave power with a 10ms UPS-grade switchover to keep your appliances running smoothly through load-shedding. Fully matched to Pakistan’s 230V / 50Hz grid standard.

Application environment requirements
The normal working environment of the system should meet the following requirements:

1. Working environment temperature: -10℃~60℃.
2. IP Grade: IP21 — suitable for indoor installation in clean, dry environments.
3. Avoid installation in areas with dust, corrosive gases, or conductive particles that may affect normal operation.
4. No excessive vibration or shock; install on a stable, vertical surface.
5. Ensure adequate ventilation around the unit for proper cooling.

Key Features:

• Built-in 120A MPPT Solar Charger — accepts up to 9,000W of solar panels (60–520V PV input range, 28A max input) for maximum generation and fast charging
• Dual AC In & Dual AC Out — connect both grid and generator as inputs; two independent AC outputs let you separate critical loads (lights, fridge, internet) from general loads
• 10ms UPS Switchover — seamless backup power during grid outages, no interruption to sensitive equipment
• ATS Control Support — automatic transfer switching for smarter, safer power routing
• Pure Sine Wave Output — clean, stable power safe for TVs, refrigerators, motors and other household appliances
• 120A Total Charging — fast solar + AC charging (up to 120A combined)
• Lithium & Lead-Acid Battery Compatible — 48V system with BMS communication and lithium battery activation
• Noise Control Algorithm — quieter operation for indoor installation
• Feed-in to Grid — surplus solar energy can be fed back to the grid
• WiFi Monitoring (Optional) — check generation and system status anytime via mobile app / web
